All-new Volvo VNX

The heavy-haul vocational truck built for extreme duty

Build yours

View specs

Designed for jobsites and heavy-haul applications, every detail delivers the strength you see and the toughness you trust.

up to 540

HP1

1950 lb-ft

Torque2

up to 200,000 lbs

GCWR3

Built for abuse

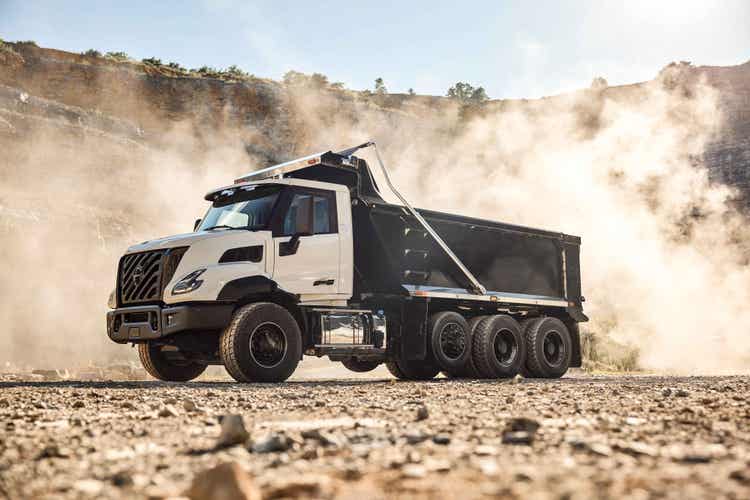

A side view of the Volvo VNX from the ground view of the truck with a dusty, smokey backgorund.

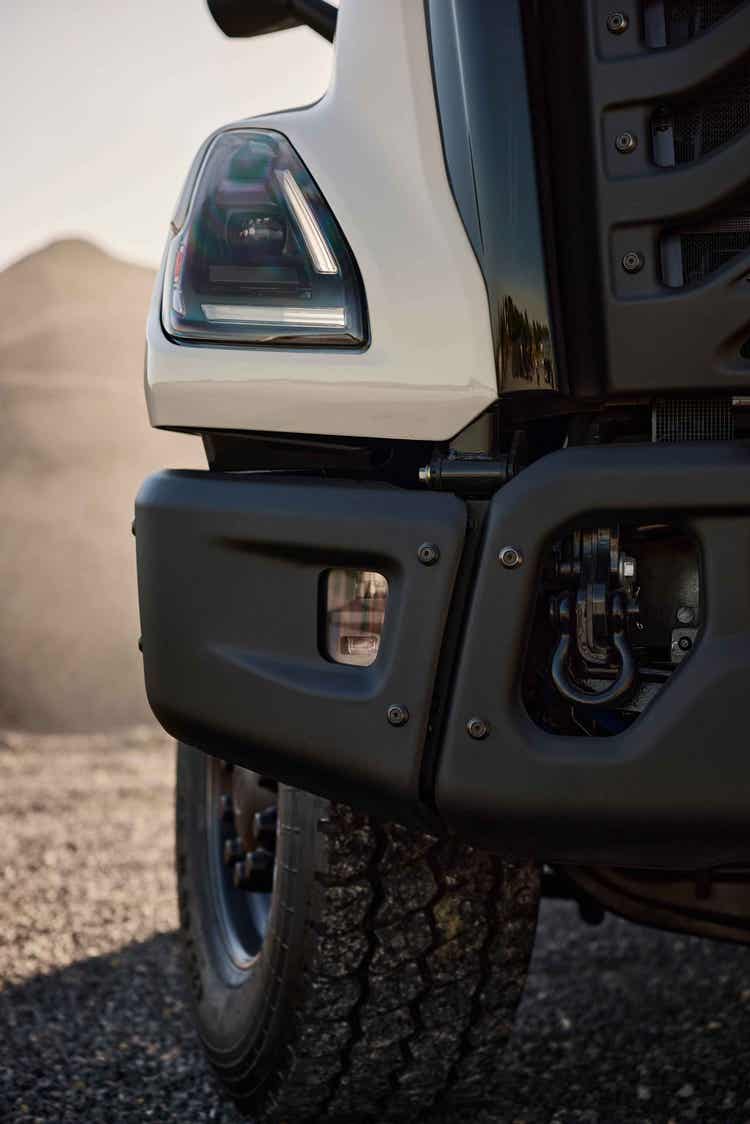

A closeup view of the left headlight and wheel of the Volvo VNX.

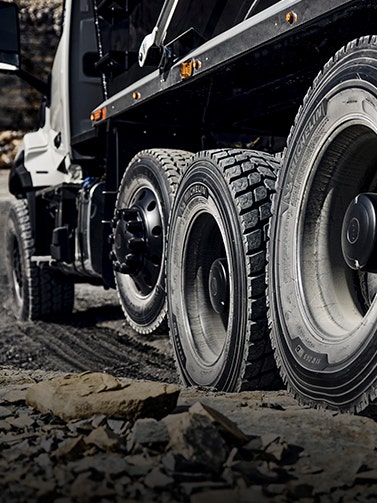

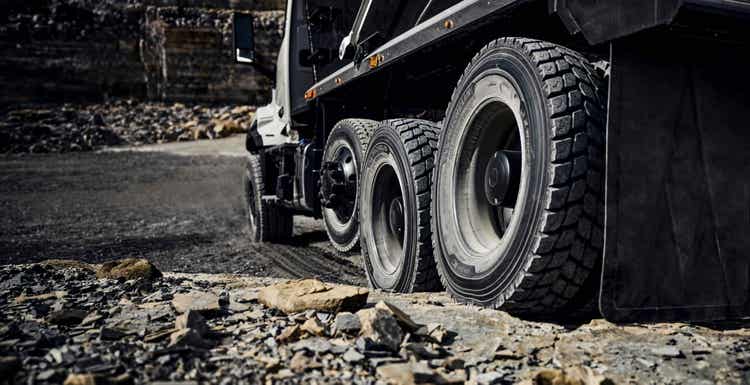

A view of the tires of the Volvo VNX on a rocky ground from the behind.

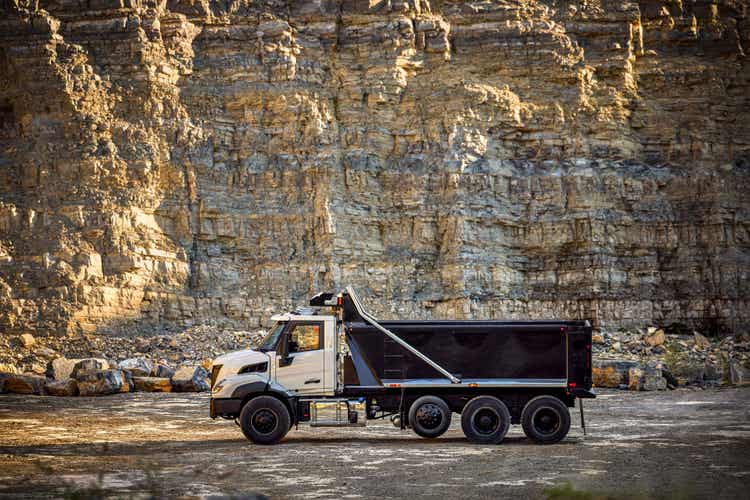

A sideview of the Volvo VNX with a rocky background.

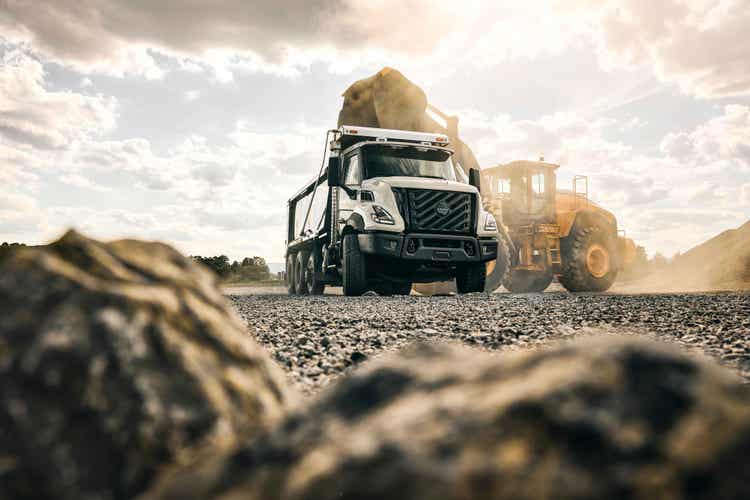

A ground view of the Volvo VNX that shows the truck from the bottom at a distance.

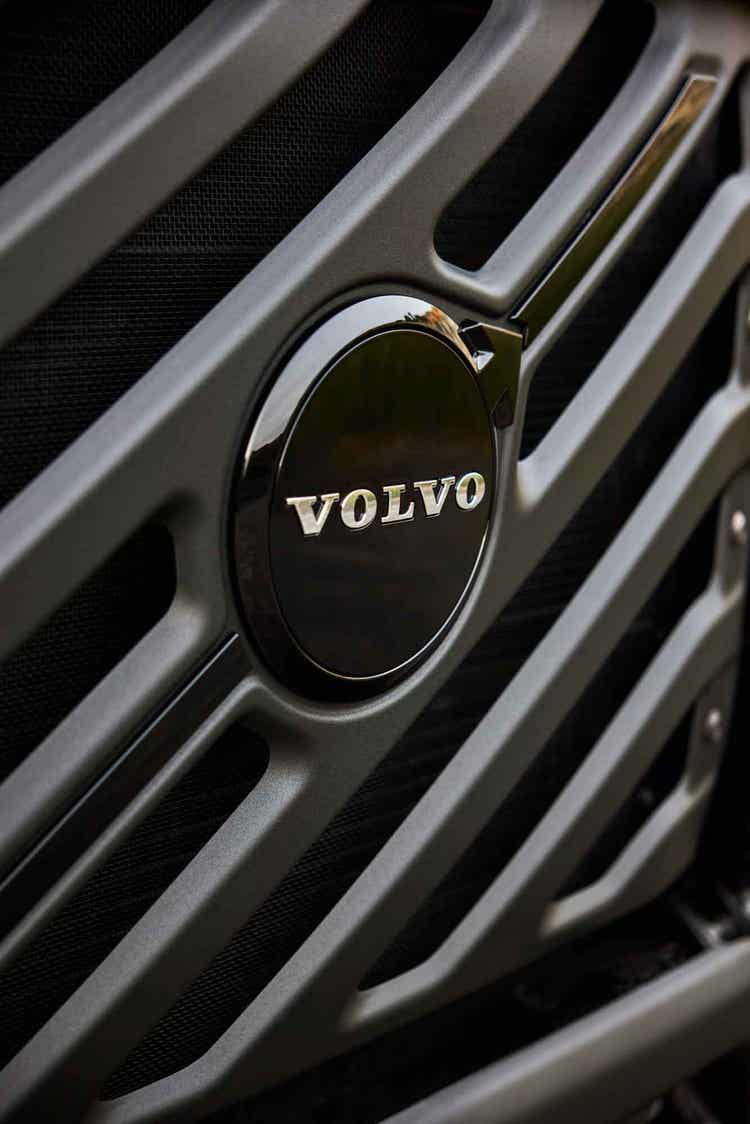

Close up view of the Volvo symbol seen on the grille.

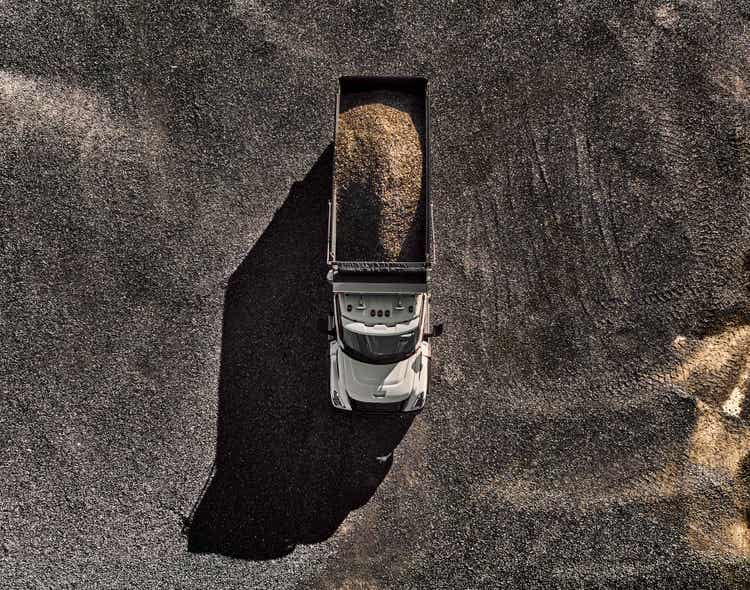

A view of the Volvo VNX from above. Showing the truck with sand in the container.
Inpage
Applications
Construction

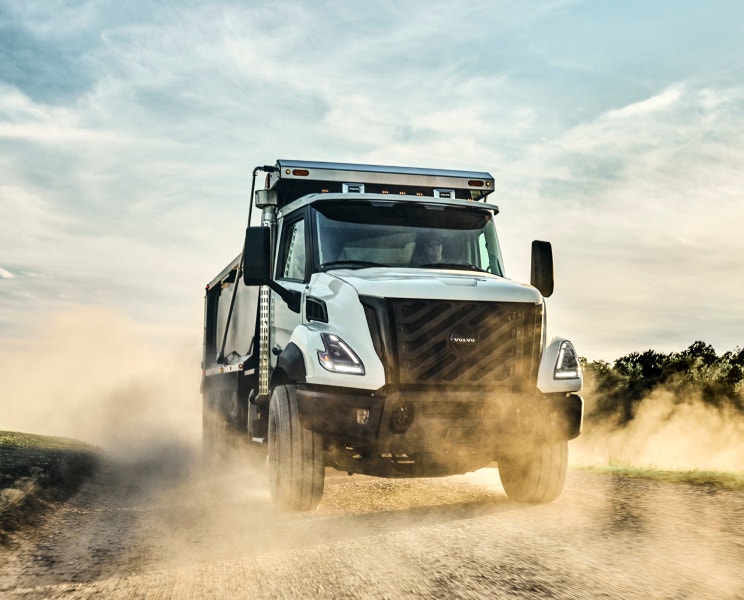

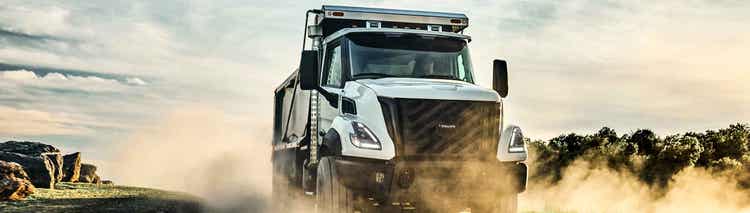

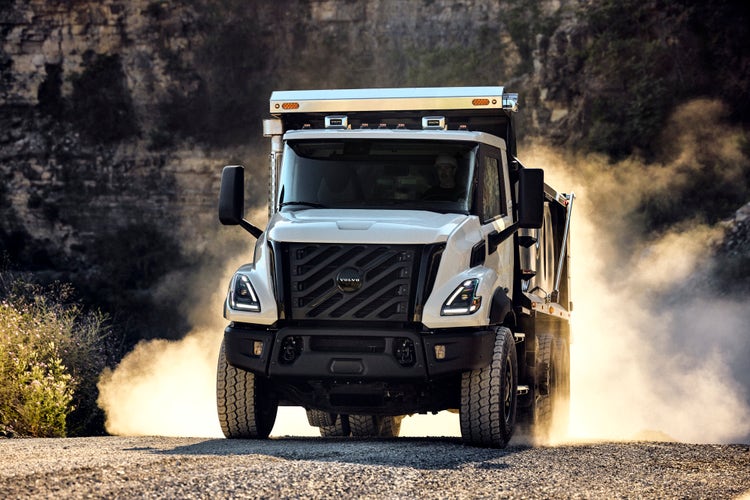

A front view of the Volvo VNX on a dustry road. With dusty smmoke on the ground around the truck.

Heavy-Haul

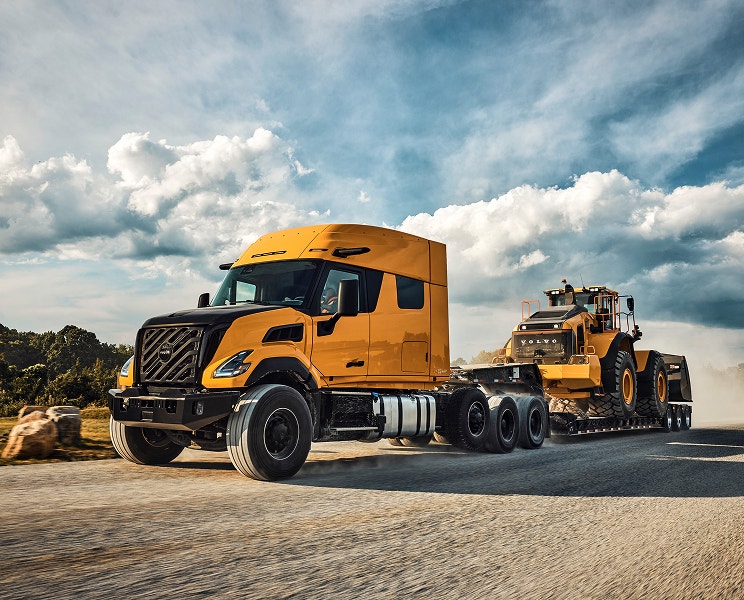

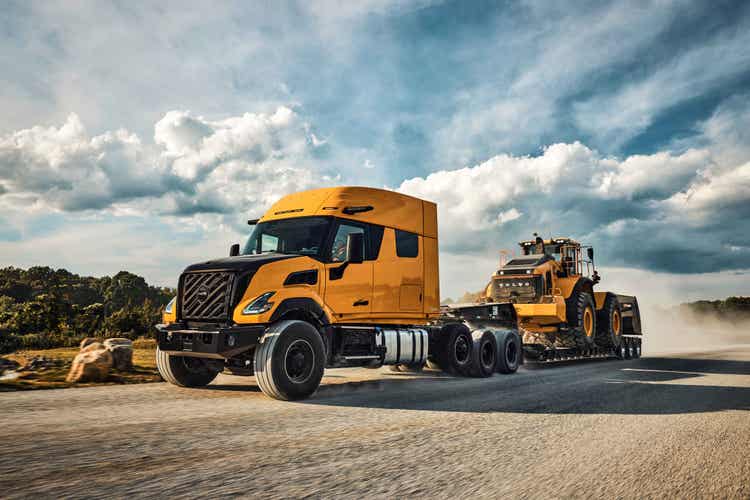

A yellow Heavy Haul truck on a dusty road.

Agriculture

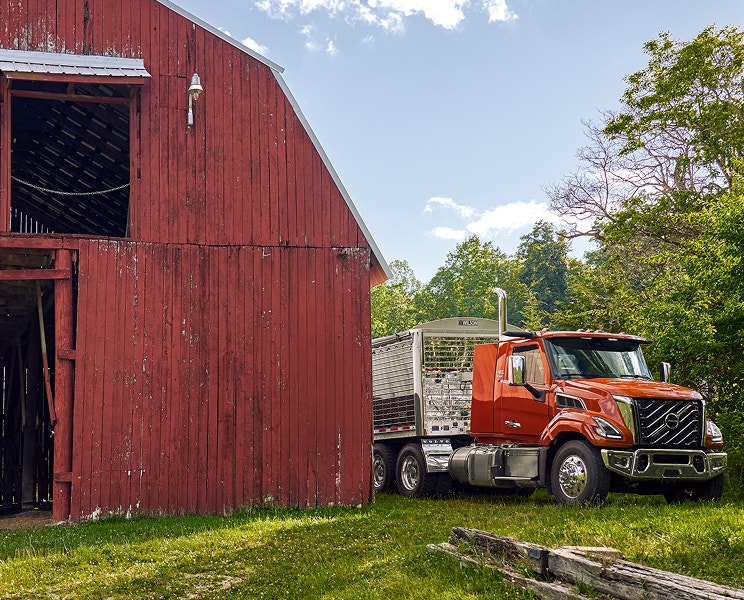

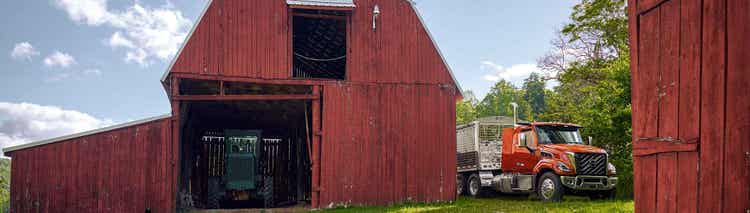

A red Volvo VNX on a farm with a barn beside the truck.

Logging

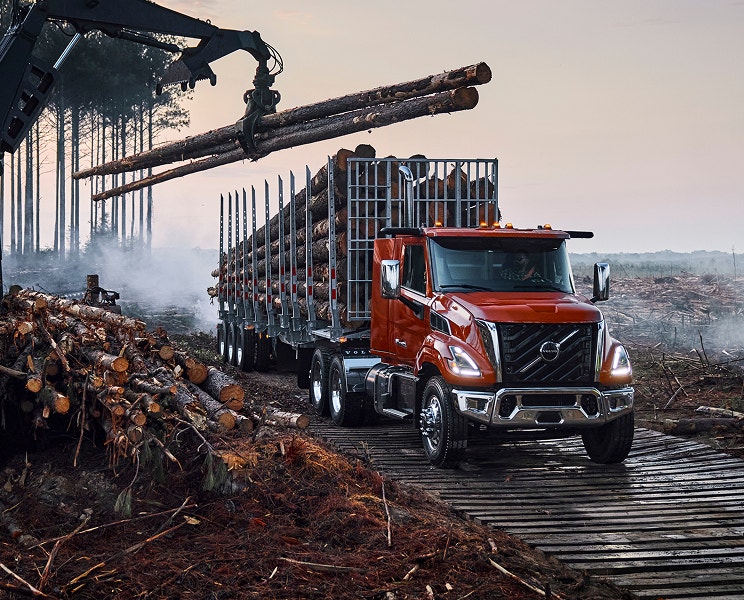

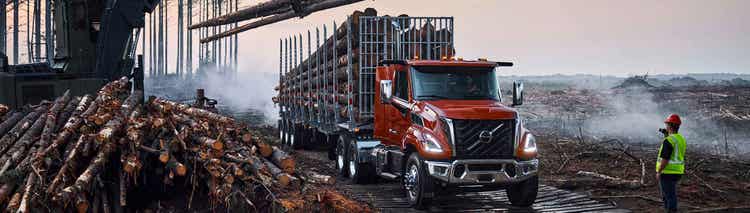

A red Volvo VNX truck that is getting loaded with logs on a site.

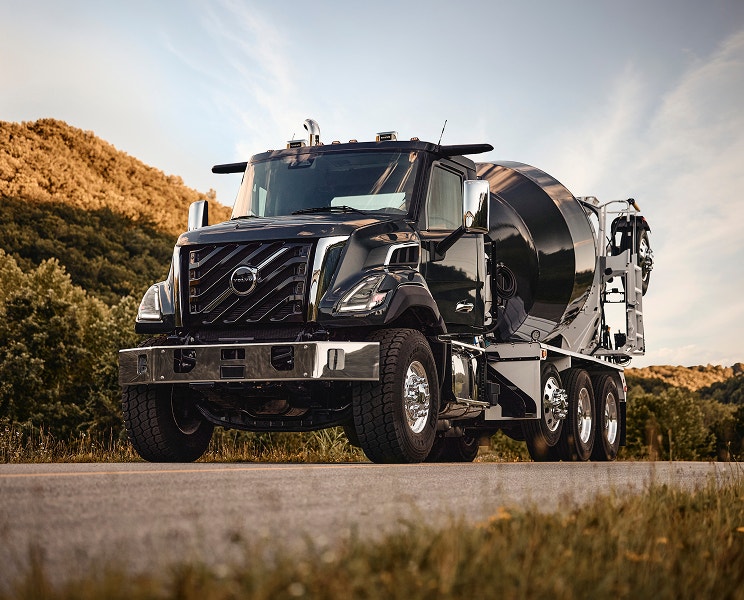

Concrete

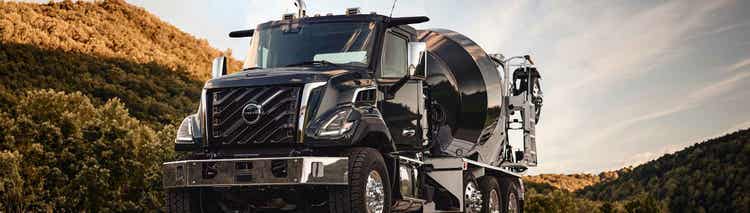

A balck color Volvo VNX truck with a concrete mixer at the back of the truck with hills in the background.

Waste & Refuse

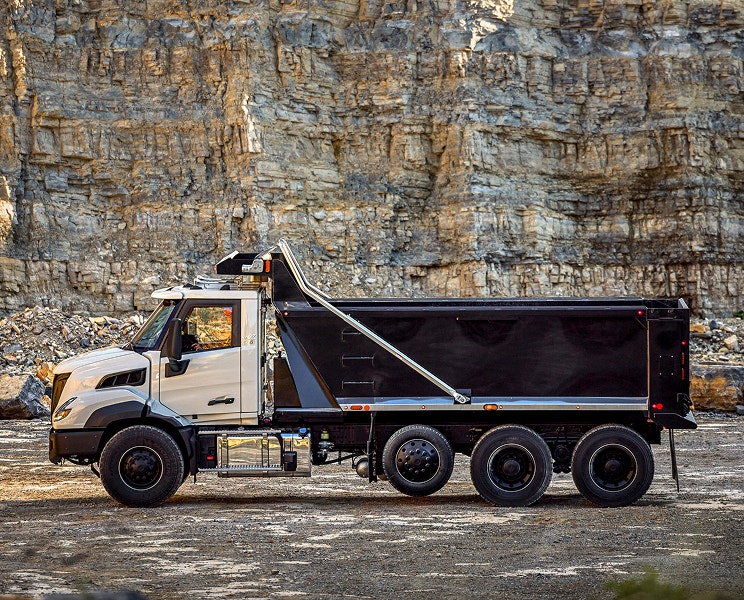

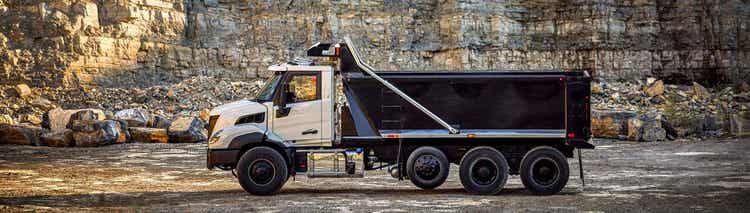

Side view of the Volvo VNX with a rocky background.

Inpage
Powertrain

Power, control, and capability working together to help keep demanding jobs moving.

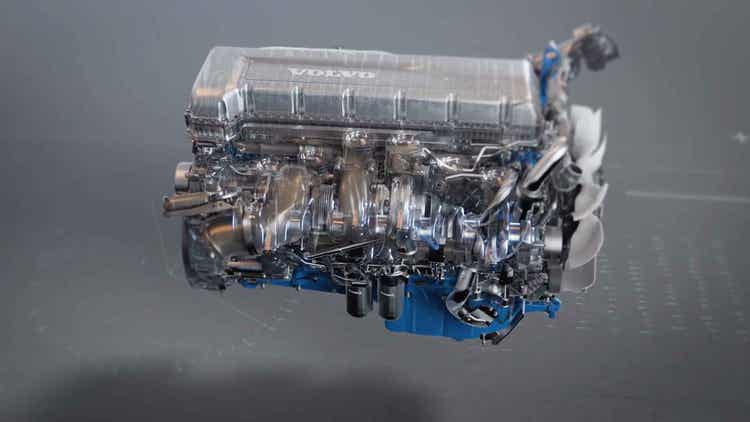

  • A sideview of Volvo's most powerful powertrain (engine)
    Our most powerful powertrain

  • Axle & suspension configurations

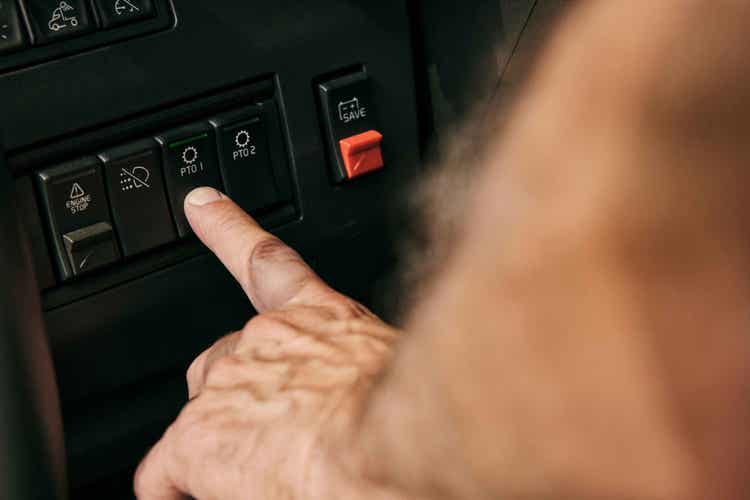

  • A finger pressing a button on the controls available on the Factory-installed PTOs
    Factory-installed PTOs
Inpage
Body Builder
Style
Black background
A bodybuilder's dream

A cleaner, more bodybuilder friendly design helps simplify custom installations and reduce complexity. From mounting to system integration, the Volvo VNX helps speed installation for the bodybuilder.

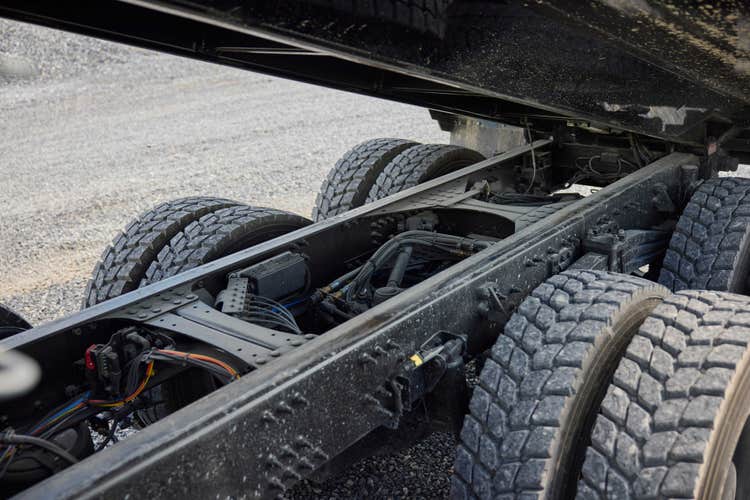

  • A clean frame rail for the body mounting of the Volvo VNX Clean frame rail for body mounting

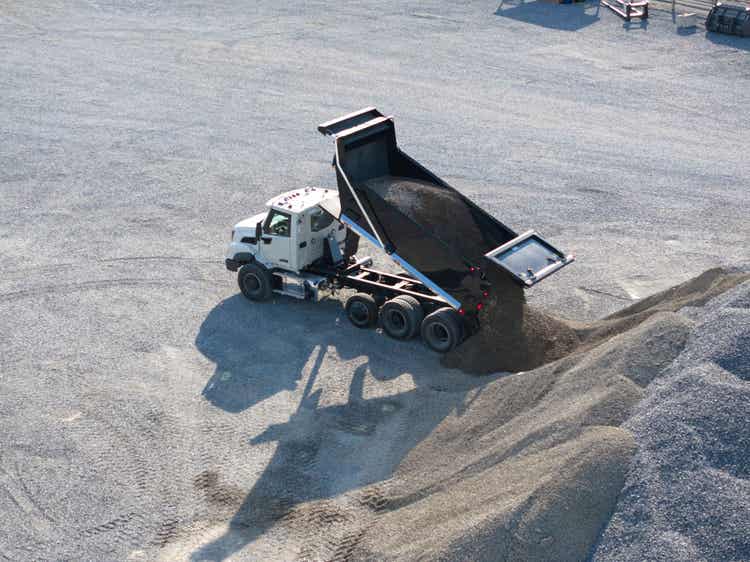

  • A drone view of the Volvo VNX dumoing sand behind it. Cab passthrough cutout for body builder cables

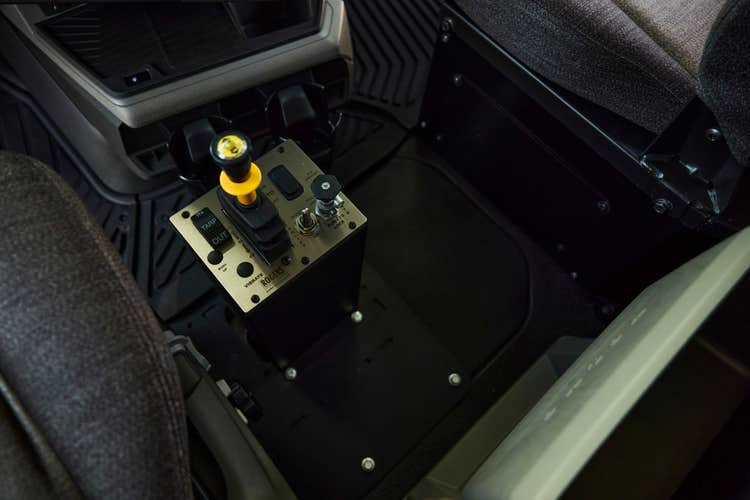

  • A view of the control panel of the Volvo VNX to help with customizations. Control panel for seamless customization

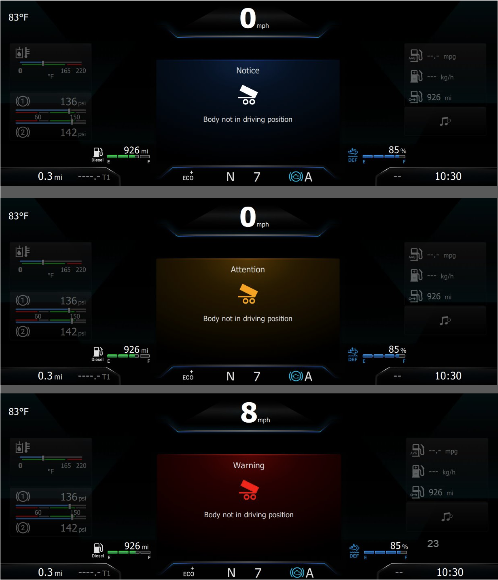

  • A view of the programmable icons available to match the body applications. Programmable icons to match your body application
https://delivery-p107394-e1241111.adobeaemcloud.com/adobe/assets/urn:aaid:aem:0e6bab9d-fb2a-4325-8dc5-277161359c36/play
Inpage
Interior
Style
Black background

Where rugged capability meets refined comfort—the Volvo VNX is engineered to help drivers stay focused, comfortable and productive.

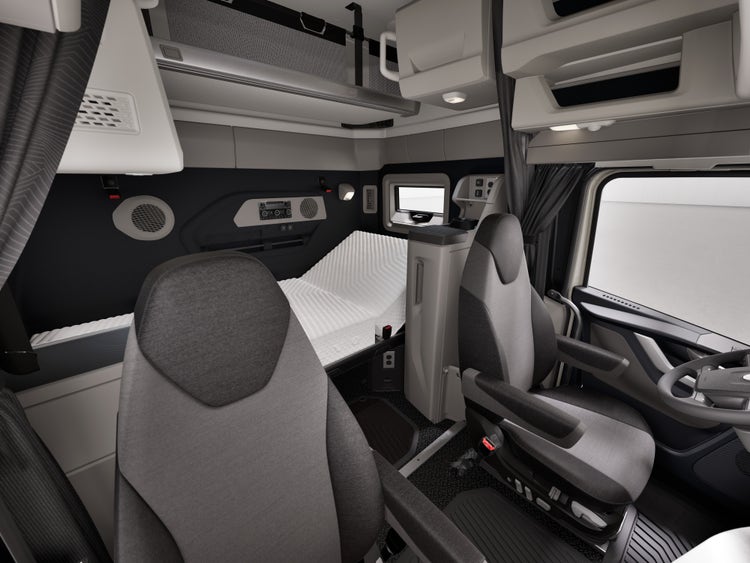

  • A view of the premium seating of the Volvo VNX.
    Premium seating
  • A man sitting down in the sleeper environment of the Volvo VNX.
    Sleeper environment

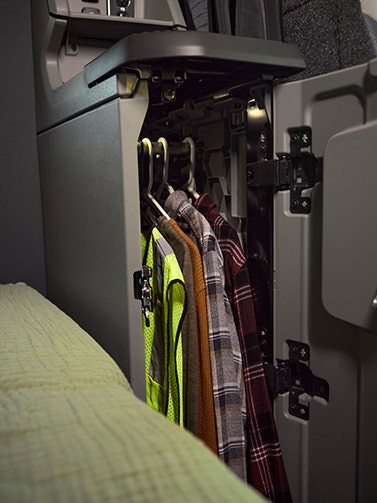

  • A view of the thoughtgul and spacious storage design of the Volvo VNX.
    Thoughtful storage design

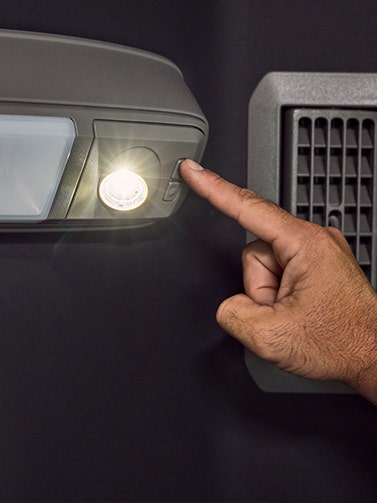

  • A view of the intelligent lighting option available in the Volvo VNX. A finger prssing a button next to the light.
    Intelligent lighting
Inpage
Connectivity

Connectivity that keeps you moving

Volvo Connect

Volvo Connect brings truck data and analytics together in one convenient portal, with access to vehicle location, safety and fuel economy reports, and other digital services from Volvo Trucks.

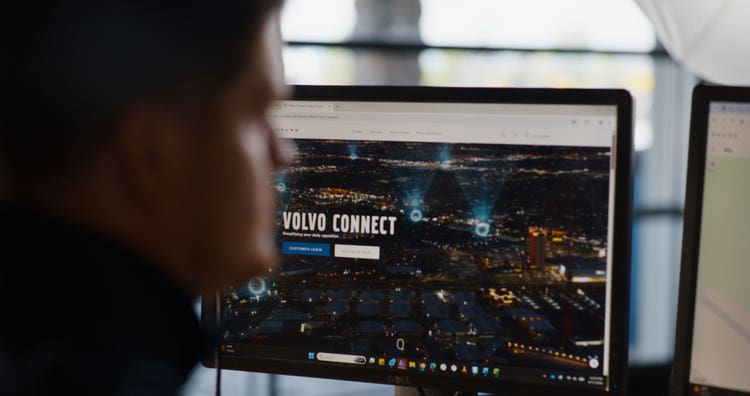

A man looking at the Volvo Connect page on the Volvo website.

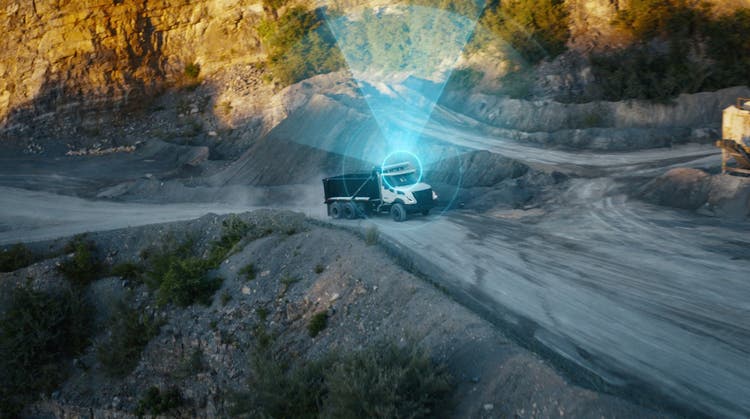

A view of the remote diagnostics that the Volvo VNX has to offer.

Remote Diagnostics

Analysis of critical fault codes leading to immediate communication and recommendations. Average diagnostic times are reduced up to 70% and average repair times more than 20%

A closeup view of a construction worker fixing his gloves with the Volvo VNX in the background.

ASIST

ASIST lets you receive estimates, approve repairs, and communicate with dealers, customers and Volvo Uptime Center – putting everything in one place to avoid repair surprises and keep your freight on track

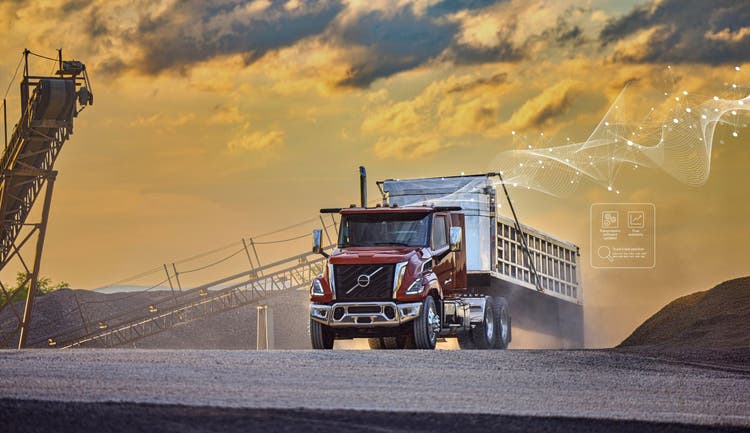

A red color Volvo VNX on a construction site.

Remote Programming

Remote Programming allows over-the-air updates to software and parameters without taking trucks out of service. Updated trucks reduce unplanned stops by up to 25% and exhibit fewer faults.

A construction worker speaking on a walkie-talkie with the Volvo VNX in the background.

Volvo Action Service

Volvo Action Service provides 24/7 assistance across the U.S. and Canada, connecting you with highly-trained experts who can manage service, schedule repairs, and more.

The VNX family,

built for your demands

Choose the model that fits your operation

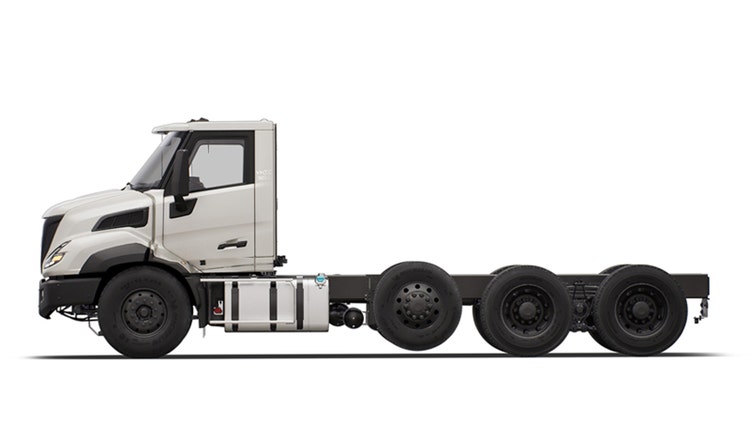

A side view of the Volvo VNX 300 Straight Truck.

VNX 300

The vocational straight truck for mixers, dumps, and roll-offs.

Truck carousel
VNX 300 Straight Truck

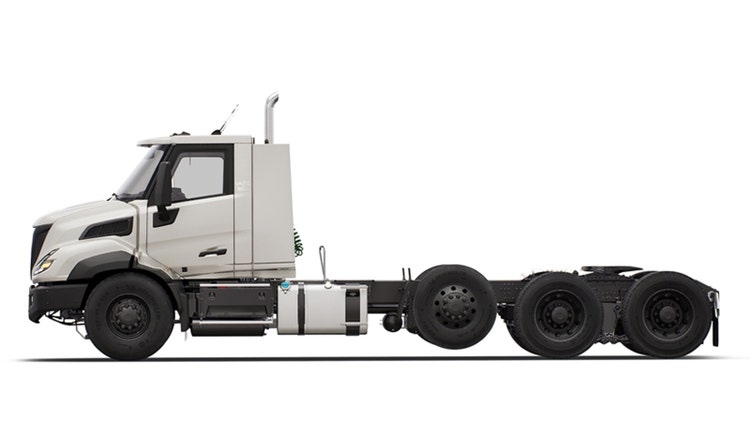

Side view of the Volvo VNX 300.

VNX 300

The daycab for local heavy-haul, agriculture, and waste & recycling.

Truck carousel
VNX 300

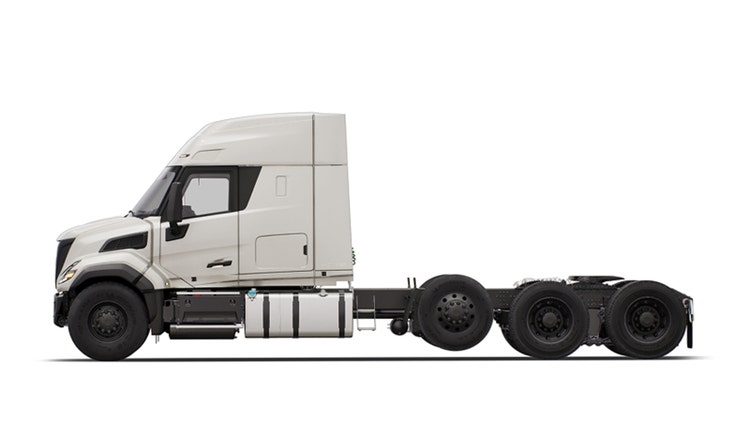

Side view of the Volvo VNX 440

VNX 440

The mid-roof sleeper for logging, equipment delivery, and regional hauls.

Truck carousel
VNX 440

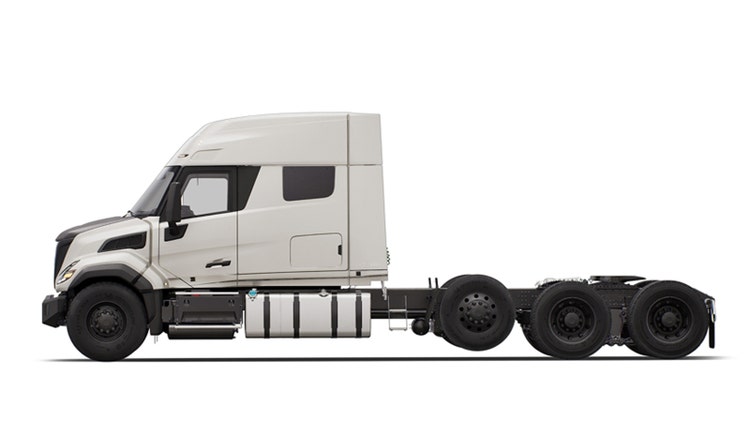

Side view of the Volvo VNX 640.

VNX 640

The premium mid-roof sleeper for long-distance heavy-haul operations.

Truck carousel
VNX 640

Specifications

id
VNX 300 Straight Truck
Configurations
Models
VNX 300, VNX 440, VNX 640
Cab Configurations
Day cab, 42-inch mid-roof sleeper, 62-inch mid-roof sleeper
Body Configurations
Tractor, Straight Truck
Axle Position
Axle-forward, Axle-back
Axle Configurations (Trucks)
4x4, 6x2, 6x4, 6x6, 8x2, 8x4, 8x6
Powertrain
Engine
Volvo D13, 405–540 hp, Up to 1,950 lb-ft
Transmission
Volvo I-Shift: 12-, 13-, or 14-Speed
PTO Options
Rear Engine PTO, Forward Engine PTO, Transmission PTO
Chassis
Capacity (GCW)
Up to 200,000 lbs. or more with application approval
Frame Rails
High tensile-strength steel frame rails
Front Axle Capacity
Up to 23,000 lbs
Rear Axle Capacity
Up to 68,000 lbs (TBD)
Suspension Options
VOAS, GRAS T-Ride, Volvo L76, Hendrickson HAS, Hendrickson Haulmax
Ground Clearance
Up to 12+ inches
Tow Capacity
Center Tow Pin: 88K lbs, Tow Hooks: 44K lbs each
Interior
Steering
Position Perfect Steering
Dynamic Steering
Volvo Dynamic Steering available
Remote Steering
Available
Driver Display
12-inch Driver Information Display
Infotainment
Optional 9-inch Infotainment Center
Smartphone Integration
Apple CarPlay / Android Auto
Seating Options
X1, X2, X3, X4, X5
Safety
Volvo Active Driver Assist (Standard)
Volvo Active Driver Assist (Optional) **
Collision Mitigation
Forward collision warning, Automatic emergency braking
Pedestrian Detection
Forward / side detection
Lane Support
Lane Departure Warning, Lane Keep and Lane Change Support **
Camera Systems
Backup camera, Available Camera Monitor System, Additional camera capability **
Airbags
Driver airbag, Side curtain airbag **
Emergency Response
E-Call
Body Builder
Bodybuilder Interface
29-pin BodyLink connector
Electrical Controls
12V bodybuilder electrical control / body module
Flex Switches
4 flex switches / 2 hard-wired switches
Cab Passthrough
Factory cab passthrough
Frame / Back Of Cab
Clean frame and back-of-cab setup
HMI
Configurable bodybuilder iconography
Rear Axle Capacity
Up to 68,000 lbs (TBD)
id
VNX 300
Configurations
Cab Configurations
Day cab
Body Configurations
Tractor
Axle Position
Axle-forward
Axle Configurations (Tractors)
4x2, 6x2, 6x4
Powertrain
Engine
Volvo D13, 405–450 hp, Up to 1,700 lb-ft
Transmission
Volvo I-Shift: 12-, 13-, or 14-Speed
PTO Options
Rear Engine PTO, Forward Engine PTO
Chassis
Capacity (GCW)
Up to 180,000 lbs.
Frame Rails
High tensile-strength steel frame rails
Front Axle Capacity
Up to 18,000 lbs
Rear Axle Capacity
Up to 40,000 lbs
Suspension Options
VOAS, GRAS T-Ride, Volvo L76, Hendrickson HAS, Hendrickson Haulmax
Ground Clearance
Up to 11 inches
Tow Capacity
Center Tow Pin: 70K lbs, Tow Hooks: 35K lbs each
Interior
Steering
Position Perfect Steering
Dynamic Steering
Volvo Dynamic Steering available
Remote Steering
Available
Driver Display
10-inch Driver Information Display
Infotainment
Optional 7-inch Infotainment Center
Smartphone Integration
Apple CarPlay / Android Auto
Seating Options
X1, X2, X3, X4, X5
Safety
Standard VADA Features
Volvo Active Driver Assist (VADA)
Advanced VADA+ Features (Optional)
VADA Plus available
Collision Mitigation
Forward collision warning, Automatic emergency braking
Pedestrian Detection
Forward / side detection
Lane Support
Lane departure warning, Available lane keep and lane change support
Camera Systems
Backup camera, Available Camera Monitor System, Additional camera capability
Airbags
Driver airbag, Available side curtain airbags
Emergency Response
E-Call
Body Builder
Bodybuilder Interface
29-pin BodyLink connector
Electrical Controls
12V bodybuilder electrical control / body module
Flex Switches
3 flex switches / 2 hard-wired switches
Cab Passthrough
Factory cab passthrough
Frame / Back Of Cab
Clean frame and back-of-cab setup
HMI
Configurable bodybuilder iconography
Rear Axle Capacity
Up to 40,000 lbs
id
VNX 440
Configurations
Cab Configurations
42-inch mid-roof sleeper
Body Configurations
Tractor
Axle Position
Axle-back
Axle Configurations (Tractors)
6x2, 6x4, 8x4
Powertrain
Engine
Volvo D13, 450–500 hp, Up to 1,850 lb-ft
Transmission
Volvo I-Shift: 12-, 13-, or 14-Speed
PTO Options
Forward Engine PTO, Transmission PTO
Chassis
Capacity (GCW)
Up to 200,000 lbs.
Frame Rails
High tensile-strength steel frame rails
Front Axle Capacity
Up to 20,000 lbs
Rear Axle Capacity
Up to 46,000 lbs
Suspension Options
VOAS, GRAS T-Ride, Volvo L76, Hendrickson HAS, Hendrickson Haulmax
Ground Clearance
Up to 12 inches
Tow Capacity
Center Tow Pin: 88K lbs, Tow Hooks: 44K lbs each
Interior
Steering
Position Perfect Steering
Dynamic Steering
Volvo Dynamic Steering available
Remote Steering
Available
Driver Display
12-inch Driver Information Display
Infotainment
Optional 9-inch Infotainment Center
Smartphone Integration
Apple CarPlay / Android Auto
Seating Options
X1, X2, X3, X4, X5
Safety
Standard VADA Features
Volvo Active Driver Assist (VADA)
Advanced VADA+ Features (Optional)
VADA Plus available
Collision Mitigation
Forward collision warning, Automatic emergency braking
Pedestrian Detection
Forward / side detection
Lane Support
Lane departure warning, Available lane keep and lane change support
Camera Systems
Backup camera, Available Camera Monitor System, Additional camera capability
Airbags
Driver airbag, Available side curtain airbags
Emergency Response
E-Call
Body Builder
Bodybuilder Interface
29-pin BodyLink connector
Electrical Controls
12V bodybuilder electrical control / body module
Flex Switches
4 flex switches / 3 hard-wired switches
Cab Passthrough
Factory cab passthrough
Frame / Back Of Cab
Clean frame and back-of-cab setup
HMI
Configurable bodybuilder iconography
Rear Axle Capacity
Up to 46,000 lbs
id
VNX 640
Configurations
Cab Configurations
62-inch mid-roof sleeper
Body Configurations
Tractor
Axle Position
Axle-back
Axle Configurations (Tractors)
6x4, 8x4, 8x6
Powertrain
Engine
Volvo D13, 500–540 hp, Up to 1,950 lb-ft
Transmission
Volvo I-Shift: 12-, 13-, or 14-Speed
PTO Options
Rear Engine PTO, Forward Engine PTO, Transmission PTO
Chassis
Capacity (GCW)
Up to 210,000 lbs.
Frame Rails
High tensile-strength steel frame rails
Front Axle Capacity
Up to 22,000 lbs
Rear Axle Capacity
Up to 52,000 lbs
Suspension Options
VOAS, GRAS T-Ride, Volvo L76, Hendrickson HAS, Hendrickson Haulmax
Ground Clearance
Up to 13 inches
Tow Capacity
Center Tow Pin: 90K lbs, Tow Hooks: 45K lbs each
Interior
Steering
Position Perfect Steering
Dynamic Steering
Volvo Dynamic Steering available
Remote Steering
Available
Driver Display
12-inch Driver Information Display
Infotainment
Optional 9-inch Infotainment Center
Smartphone Integration
Apple CarPlay / Android Auto
Seating Options
X1, X2, X3, X4, X5
Safety
Standard VADA Features
Volvo Active Driver Assist (VADA)
Advanced VADA+ Features (Optional)
VADA Plus available
Collision Mitigation
Forward collision warning, Automatic emergency braking
Pedestrian Detection
Forward / side detection
Lane Support
Lane departure warning, Available lane keep and lane change support
Camera Systems
Backup camera, Available Camera Monitor System, Additional camera capability
Airbags
Driver airbag, Available side curtain airbags
Emergency Response
E-Call
Body Builder
Bodybuilder Interface
29-pin BodyLink connector
Electrical Controls
12V bodybuilder electrical control / body module
Flex Switches
5 flex switches / 3 hard-wired switches
Cab Passthrough
Factory cab passthrough
Frame / Back Of Cab
Clean frame and back-of-cab setup
HMI
Configurable bodybuilder iconography
Rear Axle Capacity
Up to 52,000 lbs
Inpage
Resources

Resources

A truck line up of the Volvo VNX models with the text overlay that read "The All-New Volvo VNX. Strength you see. Toughness you trust."

Brand film

Strength, you see. Toughness you trust.

A Volvo VNX on a rocky ground with a text overlay that reads "The All-New Volvo VNX. Construction"

Construction Segment

Built for the jobsite

A yellow colored Volvo VNX Heavy-Haul with a text overlay that reads "The All-New Volvo VNX. Heavy-Haul."

Heavy-Haul

Engineered to handle more

A red colored Volvo VNX on a narrow road surrounded by greenery with the text overlay that reads, "The All-New Volvo VNX. Agriculture."

Logging and agriculture

Make rough roads routine

Download pdf

VNX Product Guide

Download pdf

VNX Safety Features

  • A map of the US with the available dealers in the area.

Find a dealer

Search by general area, dealer name, or use your location to view Volvo Truck dealers near you.

EXPLORE NEARBY
