Meet The VHD Family

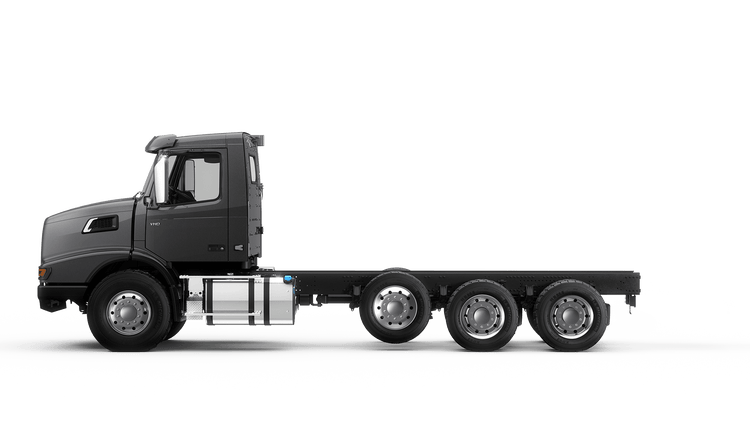

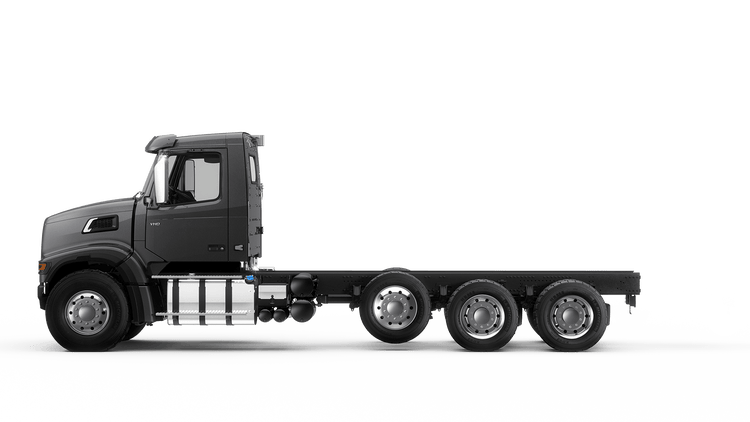

The VHD 300 axle back configuration is ideal when applications require an extremely tight turning radius and is available with the revolutionary Volvo Dynamic Steering (VDS). The axle back model can be spec'd with any frame length option available in the VHD family, including 6x4 tandem, 8x4 tandem, or 8x6 tri-drive.
The VHD 300 axle forward configuration is ideal when applications require bridge-law compliant wheelbases. Its easily customizable chassis and nine available PTO options are representative of the entire VHD line. Like all VHD configurations the 300F meets requirements for both straight-truck and tractor applications.

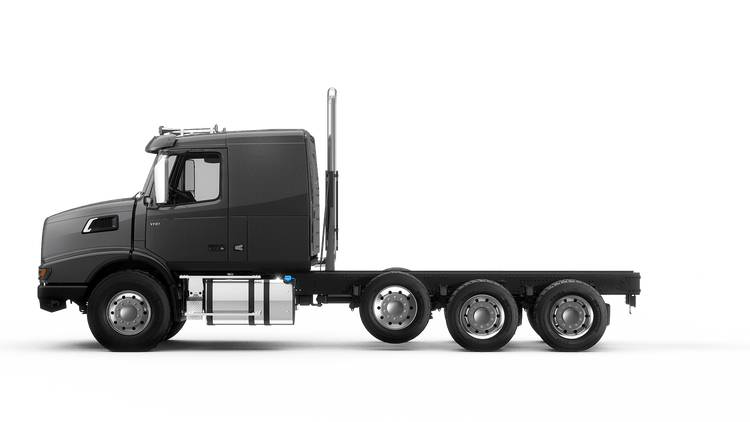

The VHD 400 axle back sleeper configuration provides the industry’s tightest turning radius, with a wheel cut up to 50 degrees, for maximum maneuverability. The 400B also is available with Volvo Dynamic Steering to compensate for the steering jolts commonly associated with off highway operations.

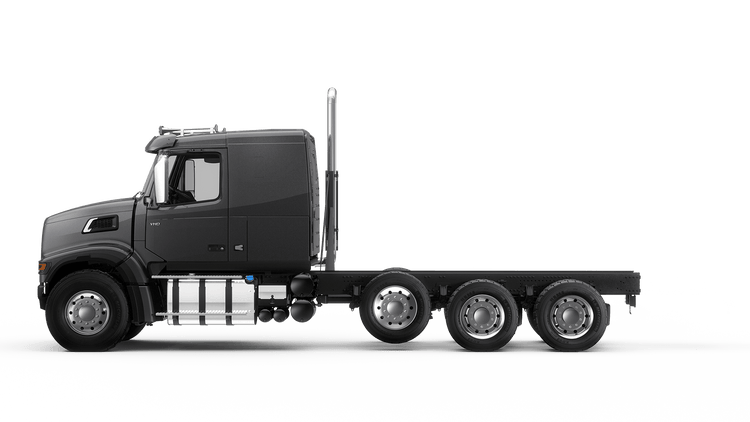

VHD 400 axle forward sleeper. Regional transport for operations like construction or timber harvesting can require overnights. Our VHD 400F flat-roof sleeper offers maximum flexibility for those runs, especially in bridge-law compliant applications. The 42" sleeper features a premium mattress that’s 75" x 36", so drivers can be rested and ready.
VHD 300 ABVHD 300 AFVHD 400 ABVHD 400 AF
DescriptionThis daycab provides maximum maneuverability on the jobsite, available for straight-truck and tractor applications.Daycab designed  for applications requiring a bridge-law compliant wheelbase.Flat-roof sleeper designed for vocational applications requiring overnight rest periods.Flat-roof sleeper designed for vocational applications requiring overnight rest periods.
ApplicationsTruck or Tractor in Various Vocational ApplicationsLocal Haul / Short HaulShort Haul / Regional HaulShort Haul / Regional Haul
Cab TypeDaycabDaycab42” Sleeper42” Sleeper
EnginesVolvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.		Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.		Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.		Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.
TransmissionsVolvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed		Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed		Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed		Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed
Wheelbase per axle configuration173"-217" 4x2

174"-225" 6x4		138"-217" 4x2

150"-225" 6x4		193"-217" 4x2

191"-225" 6x4		193"-217" 4x2

191"-225" 6x4
Wheelbase Alternate Configurations165"-217" 6x2 Tag

217"-232" 6x2 Adaptive Loading
146"-217" 6x2 Tag

195"-217" 6x2 Adaptive Loading
179"-215" 6x2 Tag

224"-236" 6x2 Adaptive Loading
179"-215" 6x2 Tag

224"-236" 6x2 Adaptive Loading
Interior Height61"61"61.5"61.5"
Interior Width83.5" door to door83.5" door to door83.5" door to door with 75"x36" mattress83.5" door to door with 75"x36" mattress

Overview

Description
This daycab provides maximum maneuverability on the jobsite, available for straight-truck and tractor applications.
Applications
Truck or Tractor in Various Vocational Applications
Cab Type
Daycab
Engines
Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.
Transmissions
Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed

Exterior Dimensions

Wheelbase per axle configuration
173"-217" 4x2

174"-225" 6x4
Wheelbase Alternate Configurations
165"-217" 6x2 Tag

217"-232" 6x2 Adaptive Loading

Interior Dimensions

Interior Height
61"
Interior Width
83.5" door to door

Overview

Description
Daycab designed  for applications requiring a bridge-law compliant wheelbase.
Applications
Local Haul / Short Haul
Cab Type
Daycab
Engines
Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.
Transmissions
Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed

Exterior Dimensions

Wheelbase per axle configuration
138"-217" 4x2

150"-225" 6x4
Wheelbase Alternate Configurations
146"-217" 6x2 Tag

195"-217" 6x2 Adaptive Loading

Interior Dimensions

Interior Height
61"
Interior Width
83.5" door to door

Overview

Description
Flat-roof sleeper designed for vocational applications requiring overnight rest periods.
Applications
Short Haul / Regional Haul
Cab Type
42” Sleeper
Engines
Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.
Transmissions
Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed

Exterior Dimensions

Wheelbase per axle configuration
193"-217" 4x2

191"-225" 6x4
Wheelbase Alternate Configurations
179"-215" 6x2 Tag

224"-236" 6x2 Adaptive Loading

Interior Dimensions

Interior Height
61.5"
Interior Width
83.5" door to door with 75"x36" mattress

Overview

Description
Flat-roof sleeper designed for vocational applications requiring overnight rest periods.
Applications
Short Haul / Regional Haul
Cab Type
42” Sleeper
Engines
Volvo D11
325-425 hp
1,250-1,550 lb-ft.

Volvo D13
405-500 hp
1,450-1,850 hp lb-ft.
Transmissions
Volvo I-Shift for Severe Duty - 12 speed

Volvo I-Shift with Crawler Gears - 13, 14 speed

Alison - 6 speed

Exterior Dimensions

Wheelbase per axle configuration
193"-217" 4x2

191"-225" 6x4
Wheelbase Alternate Configurations
179"-215" 6x2 Tag

224"-236" 6x2 Adaptive Loading

Interior Dimensions

Interior Height
61.5"
Interior Width
83.5" door to door with 75"x36" mattress

VHD Exterior

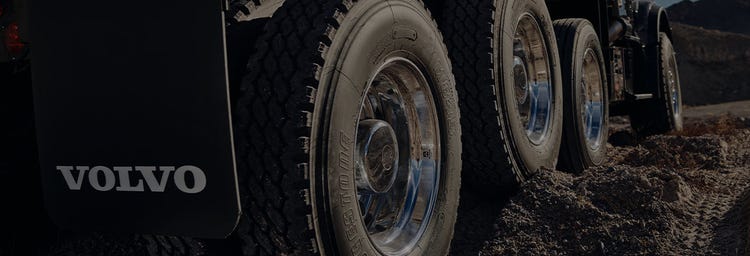

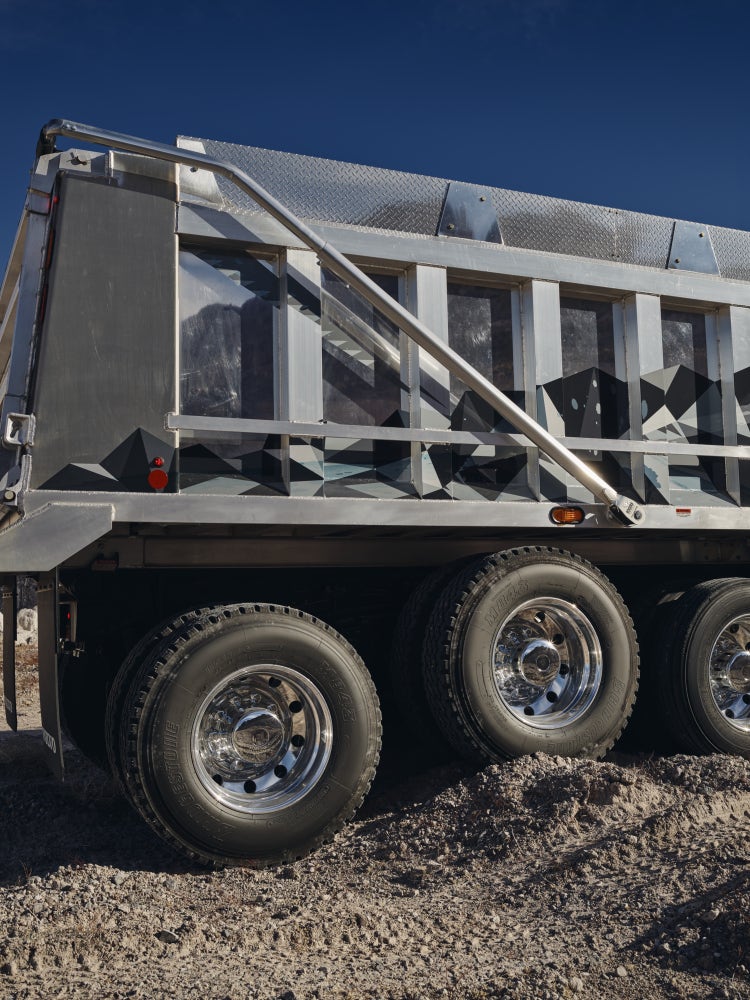

Rugged front and rear axles provide extra durability for tough vocational applications.

Exterior

VHD Interior

Tough enough to tackle the most demanding jobs with ease. Dependable enough to keep working, even when the work gets tough.

Interior

VHD Features

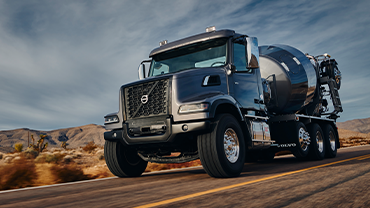

Serious off-highway capability and premium on-highway features are combined in our versatile vocational performer the VHD.

Features
