Specifications

It's time to meet the family

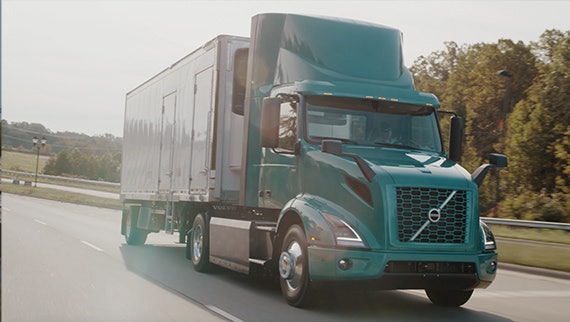

The VNR Electric straight truck is ideal for local pickup and delivery applications that commonly require a van body. With a range of up to 230 miles, this electric unit can handle demanding routes with multiple stops on a single charge.

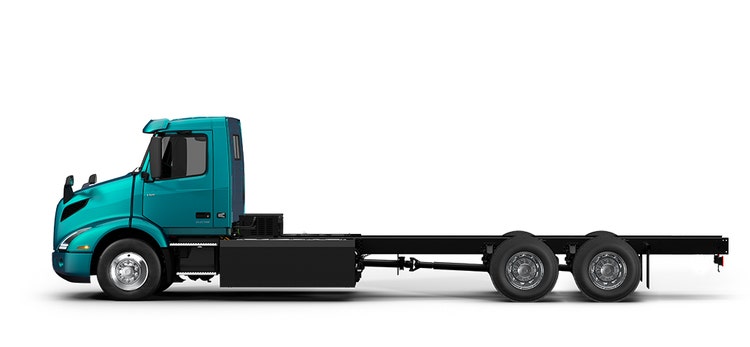

The VNR Electric 6x4 straight truck is ideal for local pickup and delivery applications that commonly require a van body. With a range of up to 190 miles, this electric unit can carry a GVW of up to 54,000 lbs.

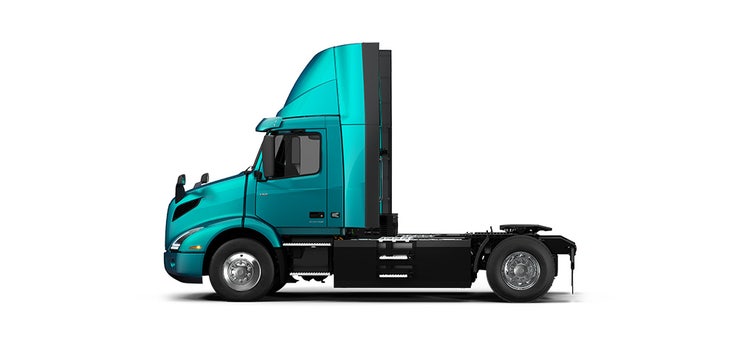

The VNR Electric 4x2 tractor is designed for local and regional delivery where maneuverability is crucial. The 4x2 offers a range of up to 175 miles and can carry a GCW of up to 66,000 lbs.

Our VNR Electric 6x2 tractor is designed for local and regional delivery when heavier payloads are involved. The 6x2 model offers a range of up to 275 miles and can carry a GCW of up to 82,000 lbs. in specific applications. Available in a 4 or 6 battery configuration based on your fleet need.

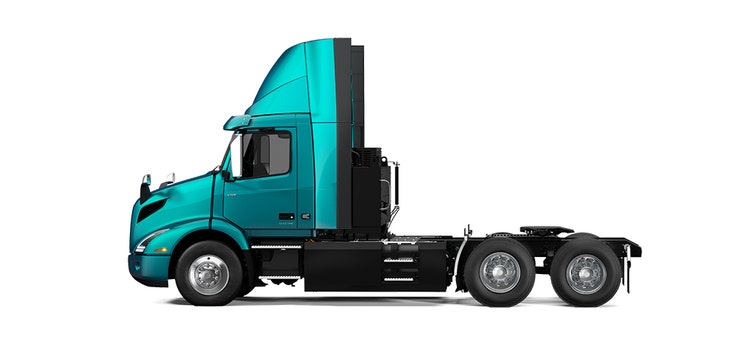

An expanded six-battery system now provides greater flexibility in hauling beyond local, urban routes. Our 6x4 offering can cover up to 275 miles on a single charge. This six-battery configuration makes electrification for a wide range of local and regional fleet operations.

VNR Electric Series

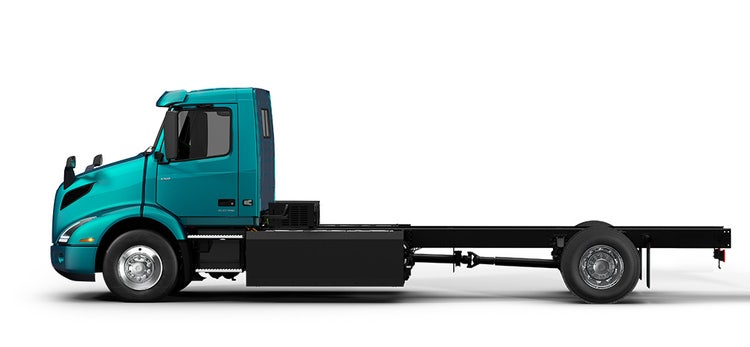

VNR Electric 4x2 Straight

VNR Electric 6x4 Straight

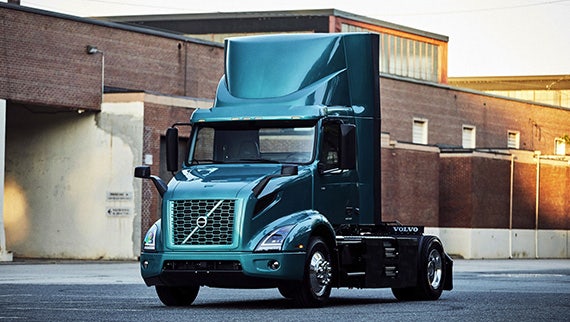

VNR Electric 4x2 Tractor

VNR Electric 6x2 Tractor

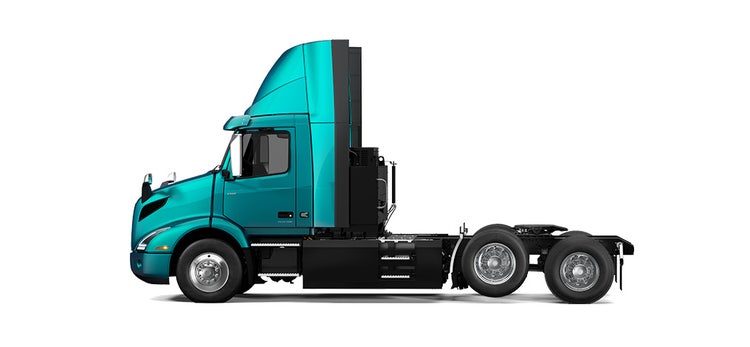

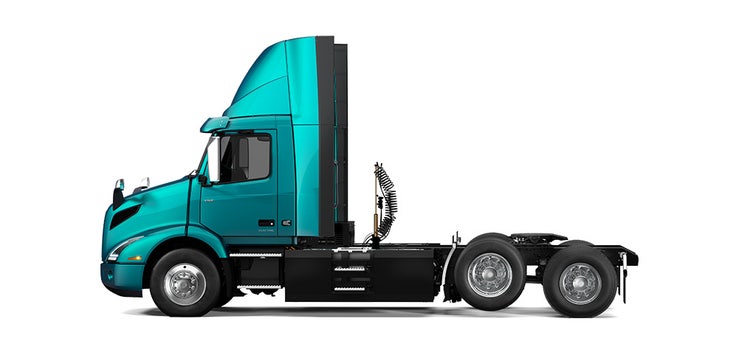

VNR Electric 6x4 Tractor
Overview
Operating range
Up to 230 miles
Up to 190 miles
Up to 175 miles
Up to 275 miles*
Up to 275 miles*
Weight Rating (lbs.)
Up to 33,000 GVW
Up to 54,000 GVW
Up to 66,000 GCW
Up to 82,000 GCW
Up to 82,000 GCW
Applications
Local distribution and regional transportation with planned routes and frequent stops. Including food and beverage and other short driving cycle services.
Local distribution and regional transportation with planned routes and frequent stops. Including food and beverage and other short driving cycle services.
Local distribution and regional transportation with planned routes and frequent stops. Including food and beverage and other short driving cycle services.
Local distribution and regional transportation with planned routes and frequent stops. Including food and beverage and other short driving cycle services.
Local distribution and regional transportation with planned routes and frequent stops. Including food and beverage and other short driving cycle services.
Battery & Charging
Total battery capacity
375kWh
375kWh
375kWh

4 Batteries: 375kWh

6 Batteries: 565kWh

4 Batteries: 375kWh

6 Batteries: 565kWh

Charging
Up to 250kW DC charge rate with CCS1 or CCS2
Up to 250kW DC charge rate with CCS1 or CCS2
Up to 250kW DC charge rate with CCS1 or CCS2
Up to 250kW DC charge rate with CCS1 or CCS2
Up to 250kW DC charge rate with CCS1 or CCS2
Charging time
60 min (80% charging at 250kW)
60 min (80% charging at 250kW)
60 min (80% charging at 250kW)

4 Batteries: 60 min (80% charging at 250kW)

6 Batteries: 90 min (80% charging at 250kW)

4 Batteries: 60 min (80% charging at 250kW)

6 Batteries: 90 min (80% charging at 250kW)

Braking Energy
Between 5-15% of brake energy is regenerated back into Energy Storage System, depending on cycle
Between 5-15% of brake energy is regenerated back into Energy Storage System, depending on cycle
Between 5-15% of brake energy is regenerated back into Energy Storage System, depending on cycle
Between 5-15% of brake energy is regenerated back into Energy Storage System, depending on cycle
Between 5-15% of brake energy is regenerated back into Energy Storage System, depending on cycle
Power
Power
340kW
455hp
4,051 lb-ft peak output torque
340kW
455hp
4,051 lb-ft peak output torque
340kW
455hp
4,051 lb-ft peak output torque
340kW
455hp
4,051 lb-ft peak output torque
340kW
455hp
4,051 lb-ft peak output torque
Transmission
Two-speed I-Shift
Automated
Two-speed I-Shift
Automated
Two-speed I-Shift
Automated
Two-speed I-Shift
Automated
Two-speed I-Shift
Automated
Driveline
Volvo Trucks electric
driveline
Volvo Trucks electric
driveline
Volvo Trucks electric
driveline
Volvo Trucks electric
driveline
Volvo Trucks electric
driveline
Top speed
68 mph
68 mph
68 mph
68 mph
68 mph
*when configured with 6 battery offering

Resources

https://main--vg-volvotrucks-ca--hlxsites.hlx.page/fr-ca/media/vtna/files/en-us/5631-volvo-vnr-electric-brochure-compressed-for-web-f-update.pdf

Next-Gen VNR Electric Brochure

Download Brochure

YouTube Video

Video

Taking you Further with Electric

Watch the VNR Electric Product Film.

YouTube Video

Video

The Future is Now

Watch the VNR Electric Brand Film.

YouTube Video

Video

Get a closer look

Watch the VNR Electric Walkaround.

YouTube Video

Video

A Holistic Electromobility Solution

Hear from Brett Pope on our electromobilty solution.

YouTube Video

Video

Applications and Fit

Hear from Chris Stadler on the ideal appliactions for the VNR Electric.

YouTube Video

Video

Gold Contract

Hear from Mark Curri on the revoluntionary Gold Service Contract.

YouTube Video

Video

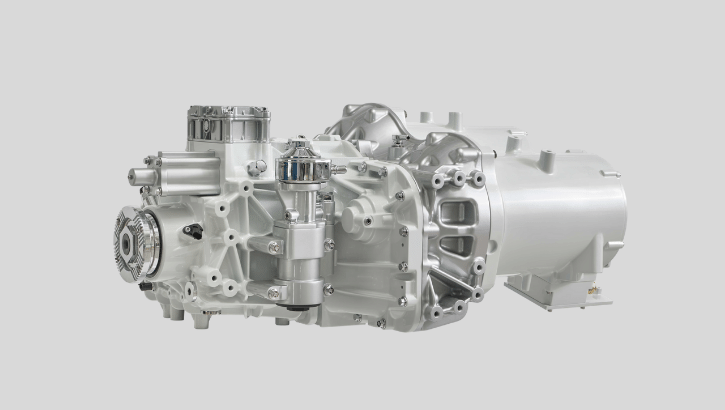

Drivetrain

Hear from John Moore on the intergrated VNR electric drivetrain.

YouTube Video

Video

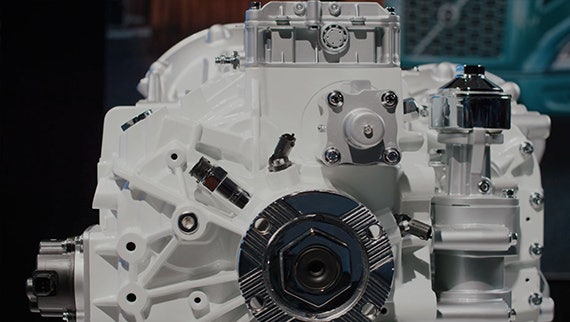

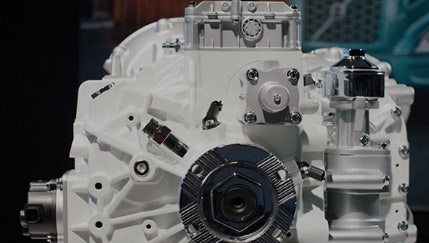

Drivetrain Product Overview
