Air Line Fitting


If you are in need of removing an air tank to gain clearance for the purpose of installing a frame component, the new fittings require an air line fitting release tool. The release tools are available to order from your Volvo dealer and are available in plastic (kit part number 85152447) or metal (kit part number 88800414).
To assist you with the new air line fittings, attached is a Design and Function document of the new air tubing and fittings.

Chassis ID Path
565/Description, Design and Function//Air Tubing and Fittings
Model Identity
TE 142060236
Publish Date ID/Operation

Air tube fitting

Pneumatic quick fittings

Fitting system

Air tube fitting

Air tube

Air tube, material

The air tube is made up of polyamide material, commonly known as nylon.
To carry the compressed air between components with no or relatively less movement, nylon pipes or rubber hoses are used. To carry the compressed air between components with relatively more movement, only rubber hoses are used.

Nylon pipe, construction

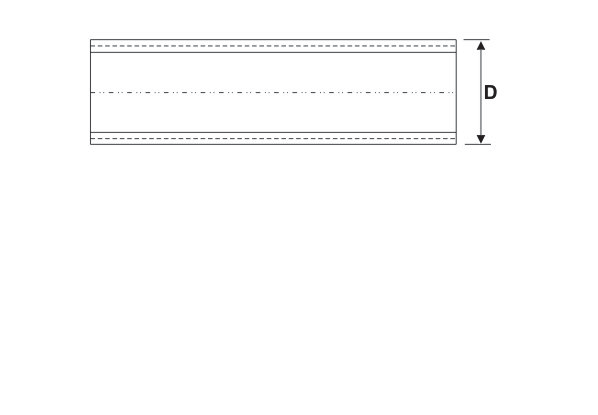

The nylon pipe is a solid core with single ply extrusion. The nylon pipe with outer diameter (D) greater than 6.35 mm, is a solid core covered with protective colored layers with fiber reinforcement between the layers. The cover is resistant to heat and sunlight.

Rubber hose, construction

The hose is about three layers of rubber and reinforcement. The rubber hose is cut to a specific length and fittings are crimped on both ends.

Pneumatic quick fittings

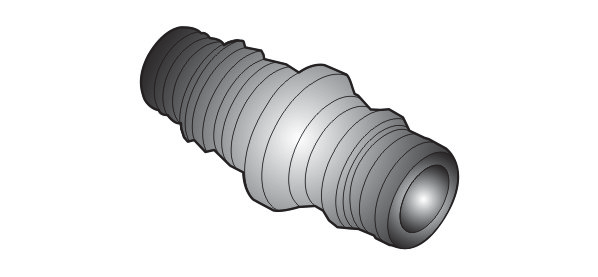

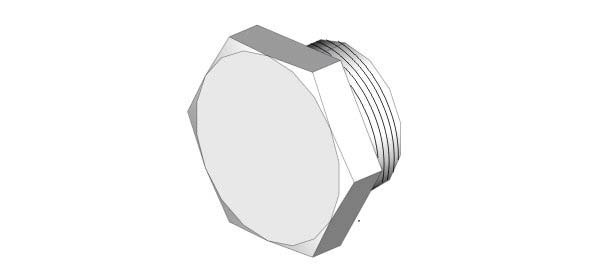

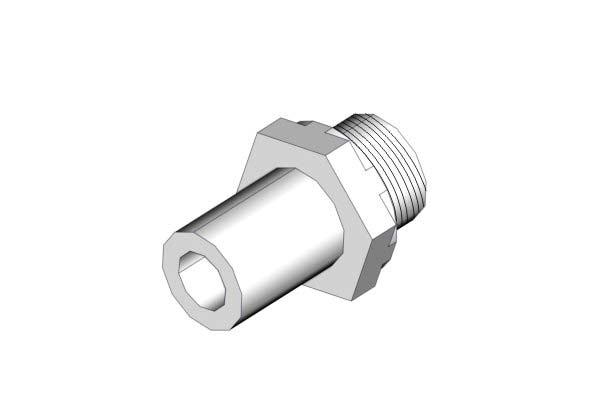

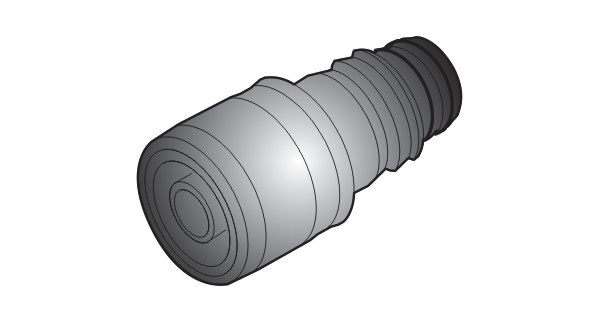

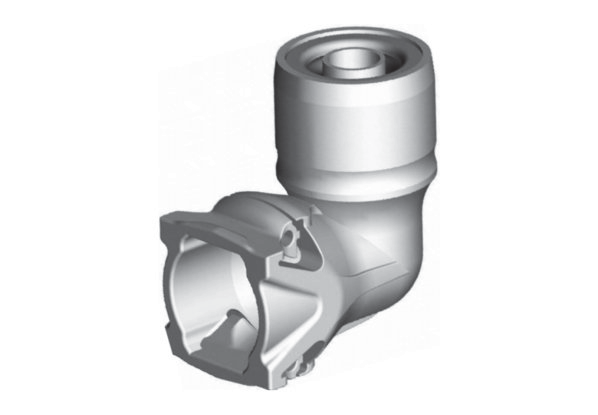

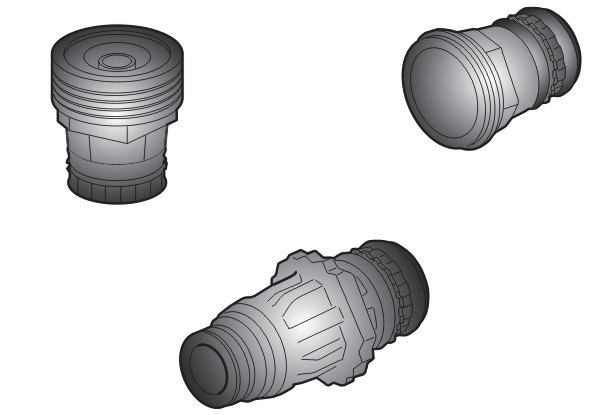

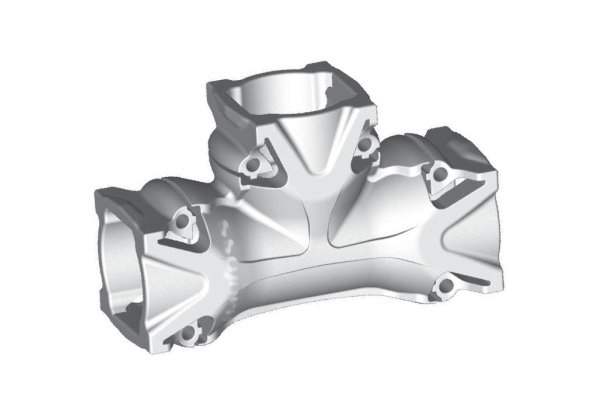

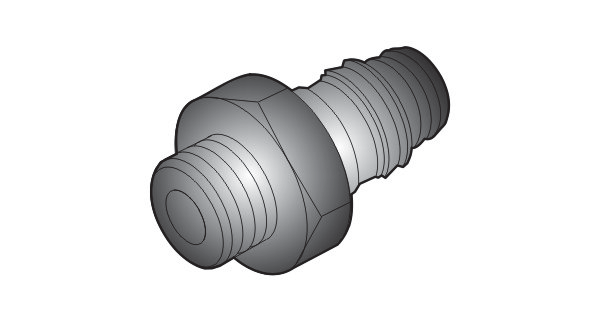

Types of pneumatic quick fittings

Fitting system

Push in fitting system, construction

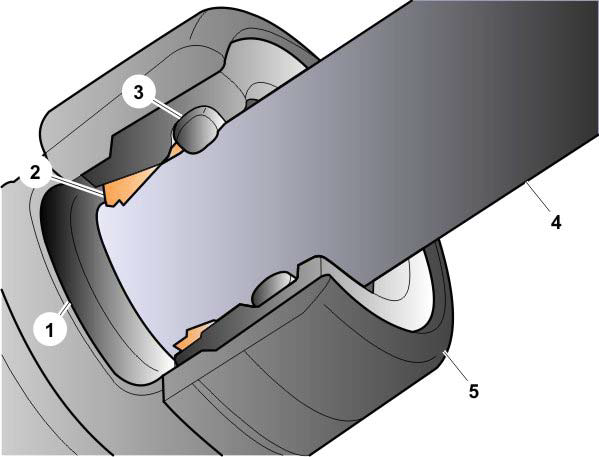

Push in fitting system, overview

1 Main seal
2 Grip ring
3 Dust seal
4 Polyamide tube
5 Fitting

The fitting (5) consists of a dust seal (3) to prevent the entry of dust and other contaminants.

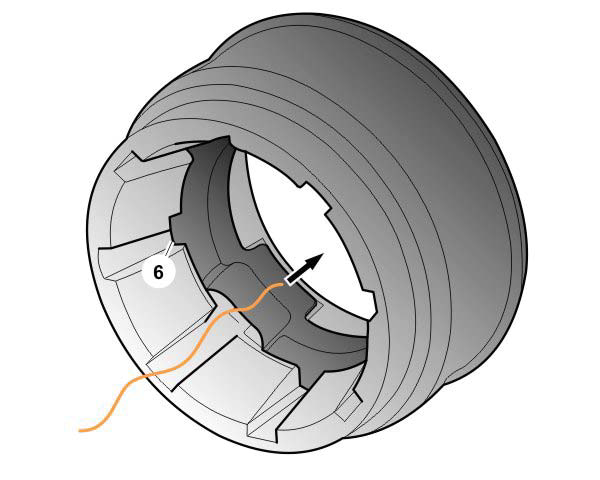

The fitting (5) also consists of a check valve (6) which allows the air to escape when the fitting is
under pressure. The check valve (6) also ensures that the tube is properly inserted into the fitting.

Note: the tube is not properly fitted, there will be leakage of air.

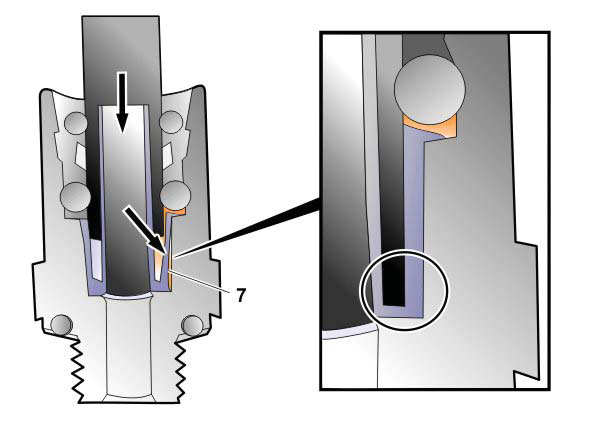

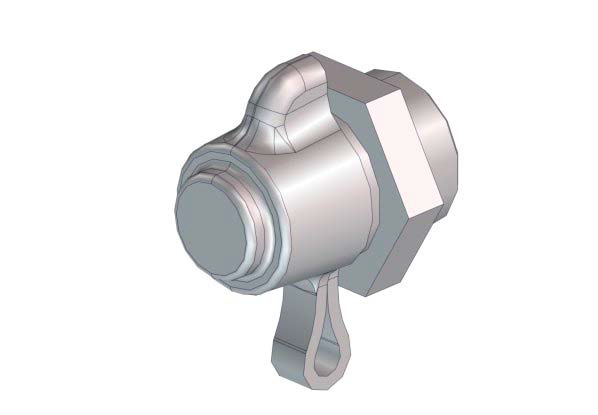

The fitting has a plastic arm (7) which breaks when the tube is installed properly.

Note: A clicking sound will be heard when the tube is installed properly for first time.

Note: The fitting can be used a maximum 5 times either for removal or installation.

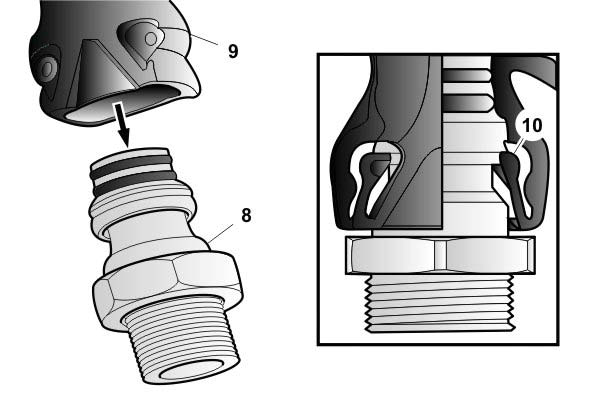

Swivel and building block fitting system, construction

The building block (9) has plastic clips (10) on either side which locks the swivel (8).

8 Swivel
9 Building block
10 Plastic clip

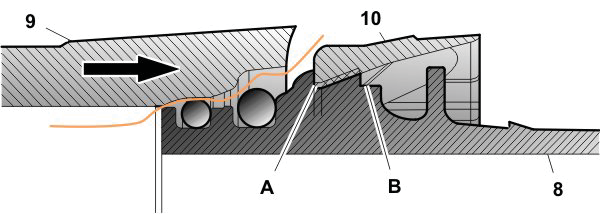

Air leakage between swivel and building block

A The fitting is locked but is not sealed.
B The fitting is locked and sealed

Leakage of air at (A) indicates that the assembly is not fitted properly.

Tube removal

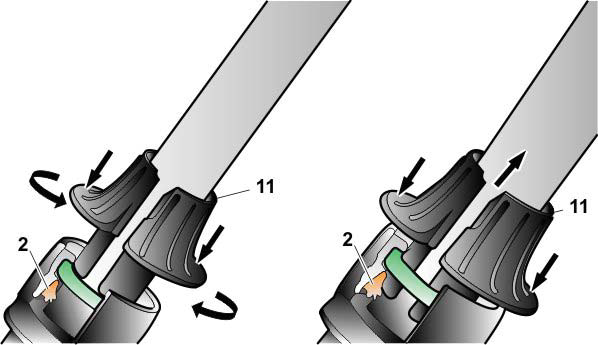

To remove the tube, a release tool (11) is used.

Position the tool on to the tube.

Push the tube into the fitting.

Rotate and push the tool to secure it fully into the fitting.

The tool will open the grip ring (2) and prevents the locking of the tube.

Note: The tool should be pressed against the fitting during the tube removal process.

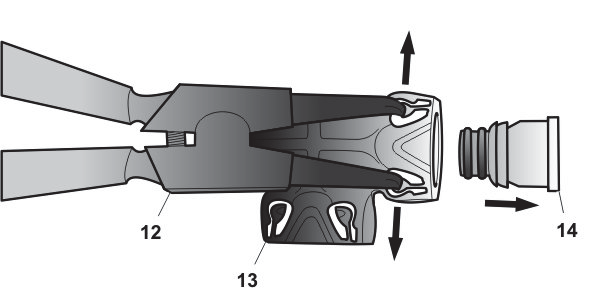

Standard snap ring pliers (12) are used to disassemble the swivel (14) and building block (13) .

While replacing the components like valves, air reservoirs or air bellows, the fittings can be removed along with tube.

Check the condition of O-rings on the fittings.

Note: Ensure that the O-rings are seated properly on the fittings before installing.

Note: If necessary, replace the O-rings.

Tube, installation

Install the fitting on to the component.

Note: Ensure that the component is fixed firmly.

Note: Ensure that the tube is free from dust and other contaminants.

Note: Ensure that there is no visual damages to the tube.

Note: Ensure that the tube ends are straight.

Note: Ensure that the tubes are fitted straight into the fittings.

Torque tighten the fittings.

Tightening torque
Air tube fitting
1. M10x1 15 ±3 Nm (11 ±2 lbf⋅ft)
2. M12x1.5 25 ±5 Nm (18 ±4 lbf⋅ft)
3. M16x1.5 40 ±8 Nm (30 ±6 lbf⋅ft)
4. M22x1.5 40 ±8 Nm (30 ±6 lbf⋅ft)
Tightening torque
Air tank, drain valve M12 17 ±3 Nm (13 ±2 lbf⋅ft)

Push the tube into the fitting until it stops.

Note: A clicking sound will be heard when the tube is installed properly for first time.

Note: The fitting can be used a maximum 5 times either for removal or installation.

Note: Ensure that the tube is fitted properly into the fitting by pulling the tube.

Check for leakage.
